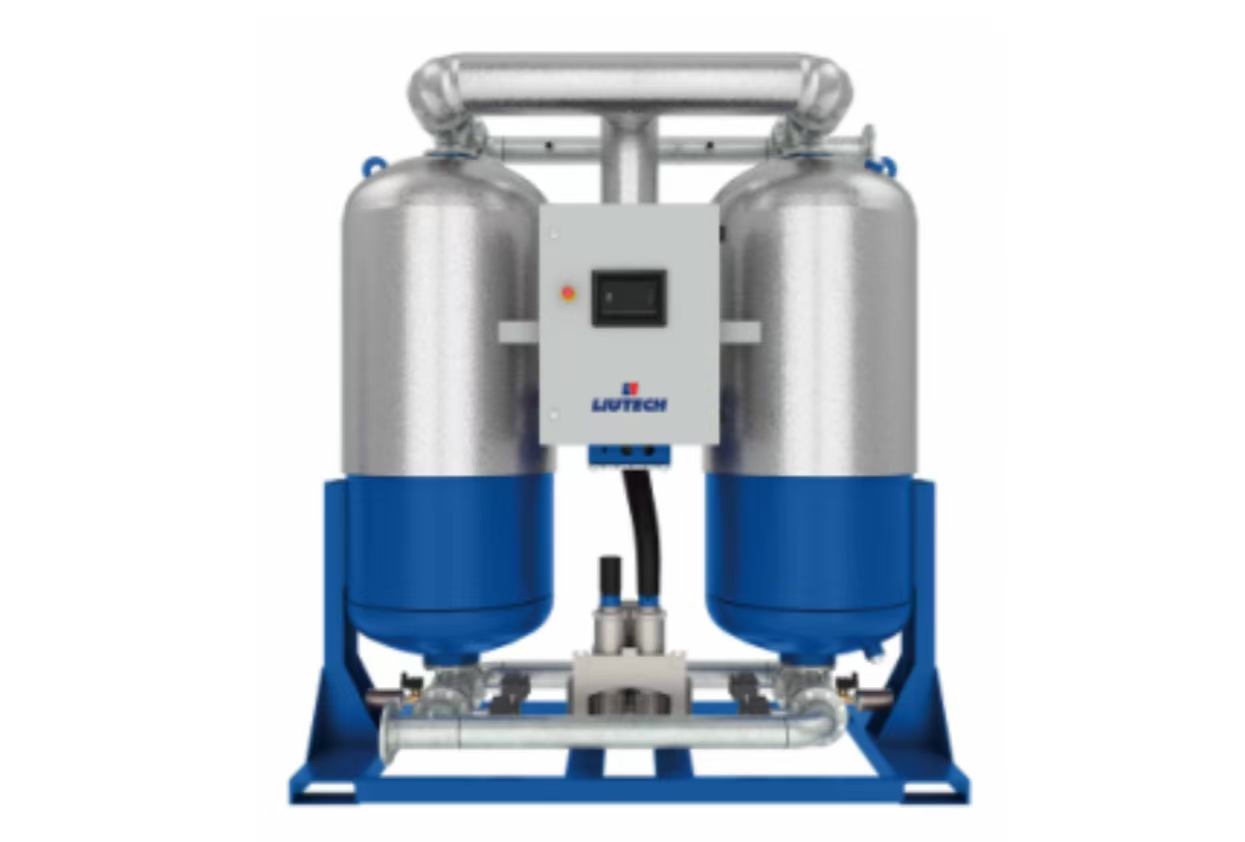

Blower-type Low Air Consumption Dryer（LBD+P/ZP）
The dew point is stable
Stable low dew point scheme, large tower body, long period
Silica gel with high adsorption/regeneration efficiency
Dew point monitoring as standard
The operation is reliable
Valve position hold/fault alarm
Alarm for abnormal regeneration temperature
Alarm for abnormal regeneration pressure
Energy saving
Dew point energy saving control℃℃℃℃
Zero-gas-consumption energy-saving proces
Blower frequency conversion control
Standard technical parameters
Pressure dew point: -40 ℃
Operating inlet temperature: 1-45 ℃
Operating pressure: 4.5-10bar
Operating ambient temperature: 1-40 ℃
Power supply: 380V/3 HP/50HZ
Optional
Pressure dew point: -70 ℃
Thermal insulation of tower body
14.5 bar
Modbus/Profibus interface
Standard configuration
Twin tower structure
Activated alumina + silica gel( – 70℃+ molecular sieve)
Electric heater
Blower (with filter)
Valve (double eccentric, with valve position indication)
Imported brand dew point meter
Frequency converter (only available for zero gas consumption model)
Cooler (only available for zero gas consumption model)

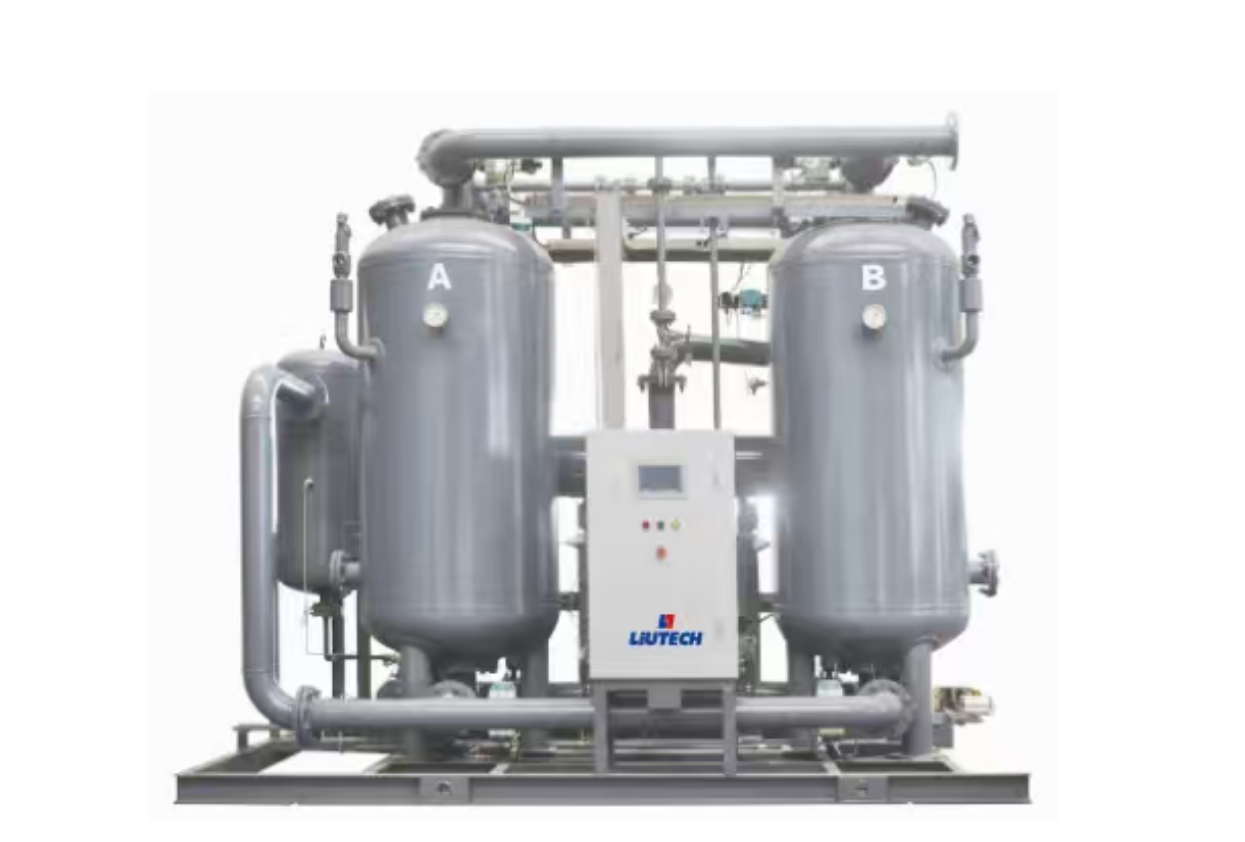

Compression Heat-driven Low Air Loss Adsorptive Dryer
Standard technical parameters
Minimum intake air temperature: 100 ℃
Operating pressure: 5-10bar
Pressure loss: ≤ 5% of inlet pressure
Intake oil content: no oil
Cooling water temperature: ≤ 32 ℃ LHC P series ≤ 30 ℃ LHCl series
Power supply: 220V/50HZ LHC P series
Control mode: PLC control
Product features and advantages
High efficiency and energy saving by using compression heat.
Equipped with PLC controller to realize intelligent control.
Highly reliable switching valve, resistant to high temperature and dust.
Key valves are equipped with valve position feedback and controlled by dual-control solenoid valve to ensure stable operation of the workflow.
High-quality special adsorbent with uniform shape, high strength, low output dew point and long service life.
Unique airflow distribution design ensures even airflow distribution during adsorption and regeneration and reuse of adsorbent.
The pressure loss is small.
Reliable three-stage drainage function: liquid level, time sequence and manual operation.
Heatless Adsorption Dryer
Electric heater
High performance desiccant
Drying tower with insulation
Stainless steel pneumatic valve
Stainless steel pressure gauge
Silencer
Standard parameters
Dew point temperature: -20 ~ 40 ℃
Inlet temperature: 35-45 ℃
Working pressure: 7-10 bar
Construction; twin towers
Optional
Dew point display
PLC touch screen control
